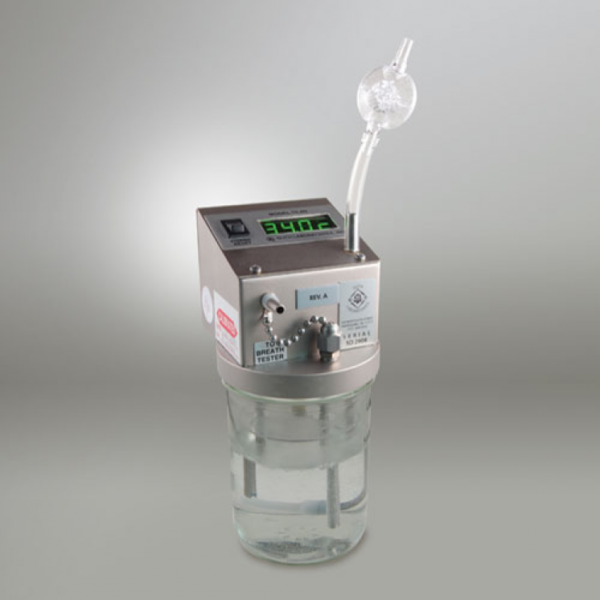

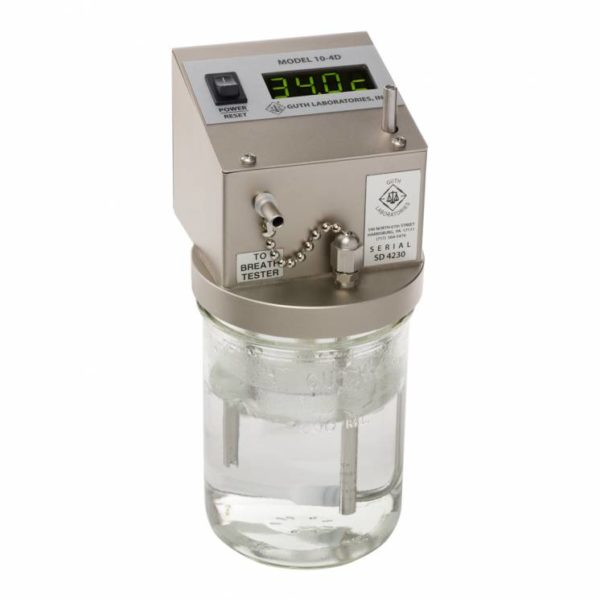

10-4D Simulator

Note: We no longer sell this product as it has now been made obsolete by the 12V500 Duplex Alcohol Simulator.

If you are in need of service or parts for this unit, please contact our support either by phone, e-mail, or our online contact form.

Thank you for your understanding.

SKU: AS-1104-DR-X Category:

Additional information

Weight 5 lbs
Dimensions 4.25 × 9 in
Power Supply

USA / Japan (110v), Argentina (220v), Australia (220v), Europe (220v), India / South Africa (220v), United Kingdom / Ireland (220v), I'm Not Sure, China (220v)

About

About This Product

ALCOHOL BREATH TEST SIMULATOR
Digital Readout – Microprocessor Controlled

A Calibration Port is provided for verifying the temperature of the simulator.

FEATURES

  • Eight bit microprocessor control
  • High stability internal voltage reference
  • 12 bit digital accuracy from A/D converter
  • Internal AC power transformer with AC connections isolated
  • Visual indication of system operation during warm-up (dot scan)
  • Visual indication of heater activitiy via dot display
  • Visual and audible indication of system malfunction (Malfunction is displayed as an error number)
  • RFI protected

SYSTEM SHUTDOWN UNDER THE FOLLOWING CONDITIONS

  • No output from shorted or open temperature sensor
  • No change in ambient temperature after 15 minutes
  • Temperature of solution 34.2

General

General Specs

Construction Nickel Plated Brass w/ Matte Finish
Readout Bright LED Display
Sensor Electronic Solid State
Power Input 120 VAC, 60 cycle 220 – 240 VAC, 50 cycle
Power Consumption 72 Watts
Warranty 1 Year Parts + Labor

Electrical

Electrical Specs

Domestic Power Input 105/120 VAC @ 50 Hz
Foreign Power Input: 220-240 VAC @ 60 Hz
External Safety Fuse Easy, accessible plug in 1.0 AMP Fuse
Power Switch Double pole mounted in top housing
Indicator Power Lamp n/a
Indicator Heat Lamp n/a
Temperature Controller Microcontroller
Immersion Heater Ground wire welded to heater housing for shock protection

Performance

Performance

Temperature Range 34.0°C ± .05°C
Recovery Time
Laboratory Glass Container 500ml +/- 5% FIll mark molded into glass container
Secondary Baffle Available
Heated Head Space n/a
Heated Output Exhaust n/a
Warm Up Time
